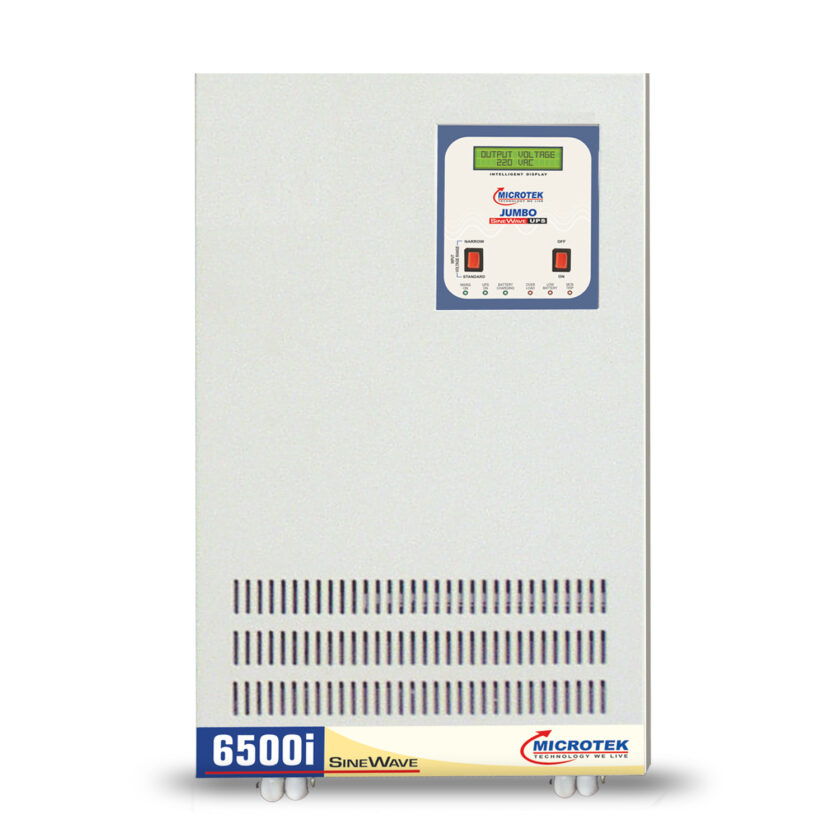

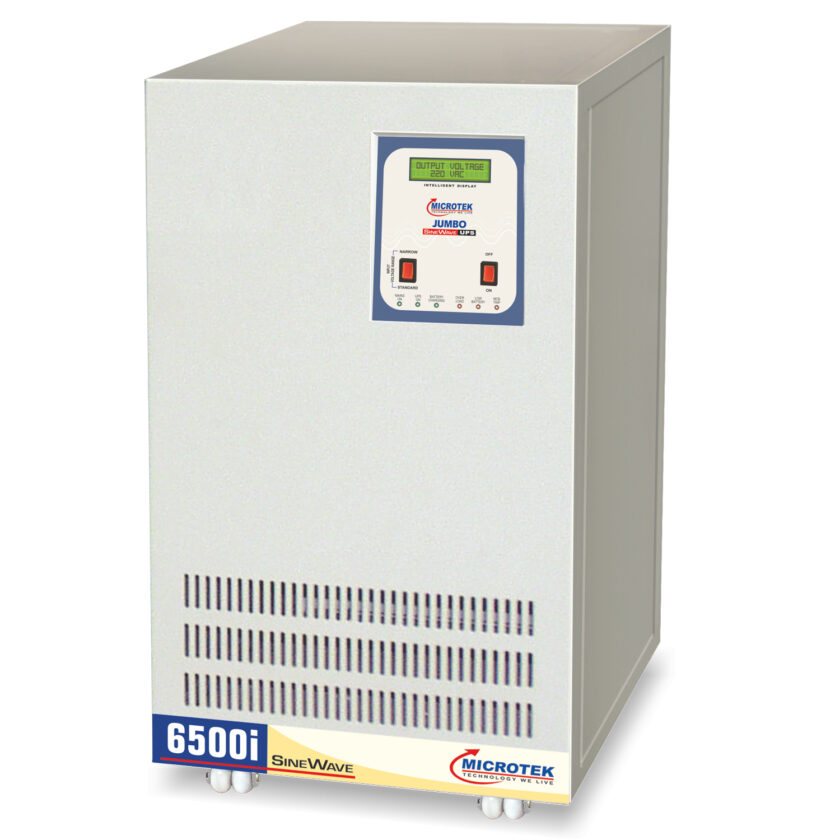

Microtek UPS JM SW 6500i is Hi-Grade IGBT Based Jumbo UPS Model with Intelli Pure Sinewave Technology which ensures Noiseless, Safe and Efficient Performance. It is Micro Processor based PWM technology using Hi-Grade IGBT’s with Peak Current Handling Capacity and LCD Display. It has In-built Time Delay Relay and Advanced Battery Management for Longer Battery Life and Quick Charging. KEY FEATURE Advanced Battery Management (ABM) for Longer Battery Life and Quick Charging Micro Processor based PWM Technology using Hi-Grade IGBT’s LED & LCD Display Indications. Best Suited for most High Capacity Sophisticated Applications. Generator Compatible. In-built Time Delay Relay (TDR). DISPLAY INDICATION MAINS ON UPS ON BATTERY CHARGING OVERLOAD LOW BATTERY MCB TRIP Technical Specifications INPUT INPUT VOLTAGE (Standard range) 100V ~ 280V INPUT VOLTAGE (Narrow Range) 180V ~ 265V OUTPUT OUTPUT VOLTAGE (Main Mode) Same as INPUT OUTPUT VOLTAGE (UPS Mode) 220V 10% OUTPUT WAVE FROM (Main Mode) Same as INPUT OUTPUT WAVE FROM (UPS Mode) Pure Sinewave CHANGE-OVER SWITCHOVER (Mains>UPS / UPS>Mains) AUTOMATIC UPS TRANSFER TIME <15 msec TECHNOLOGY UPS OVERLOAD / UPS SHORT CIRCUIT 105%~125%(4 Times Auto Reset) / 300% EFFICIENCY (BATTERY MODE) >80% TOTAL HARMONIC DISTORTION (Resistive Load) Less than 3% AUTO RESET FEATURE YES INPUT DC RANGE 84 ~ 114 V ± 1 Volt MAXIMUM CHARGING CURRENT 16 Amps(Settable ± 3 Amps) SEPARATE OUTPUT WITH TDR 1 minute TDR OPERATING TEMPRATURE 0 to 45 Degree Celsius
