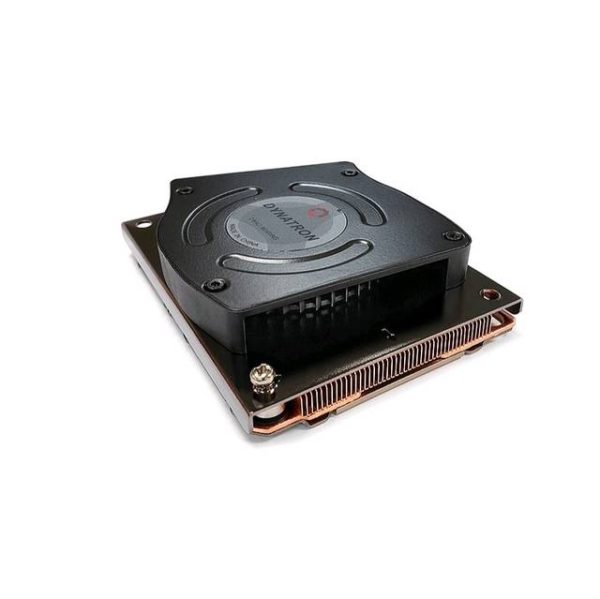

Description Specifications Mfr Part Number: B18 CPU Support: Intel Xeon Platinum/ Gold/ Silver/ Bronze Family Processor (formerly Cascade Lake, Skylake) CPU Socket: FCLGA 3647 Narrow ILM Solution: Blade Server and Up Dimensions: 108 x 81.5 x 25 mm Weight: 460 g Material: Copper1100 Heatsink with Vapor Chamber Base Fan Dimension: ˜80 x 13 mm Speed: At Duty Cycle 20%: 1500 ± 200 RPM At Duty Cycle 50%: 4000 ± 10% RPM At Duty Cycle 100%: 8000 ± 10% RPM Power: €‹At Duty Cycle 20%: 1.44 W At Duty Cycle 50%: 4.8 W At Duty Cycle 100%: 19.2 W Bearing: Ball Type, Double Rated Voltage: 12V Air Flow: At Duty Cycle 20%: 4.3 CFM At Duty Cycle 50%: 11.6 CFM At Duty Cycle 100%: 22.8 CFM Noise Level: At Duty Cycle 20%: 25.6 dBA At Duty Cycle 50%: 46.9 dBA At Duty Cycle 100%: 62 dBA Air Pressure: At Duty Cycle 20%: 3.0 mm-H2O At Duty Cycle 50%: 21.0 mm-H2O At Duty Cycle 100%: 83.8 mm-H2O Lead Wire Pin Out: Pin1- (-) Pin2- ( ) Pin3- (Techometer/Signal output) Pin4- (PWM) *All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with sales for exact offers.
